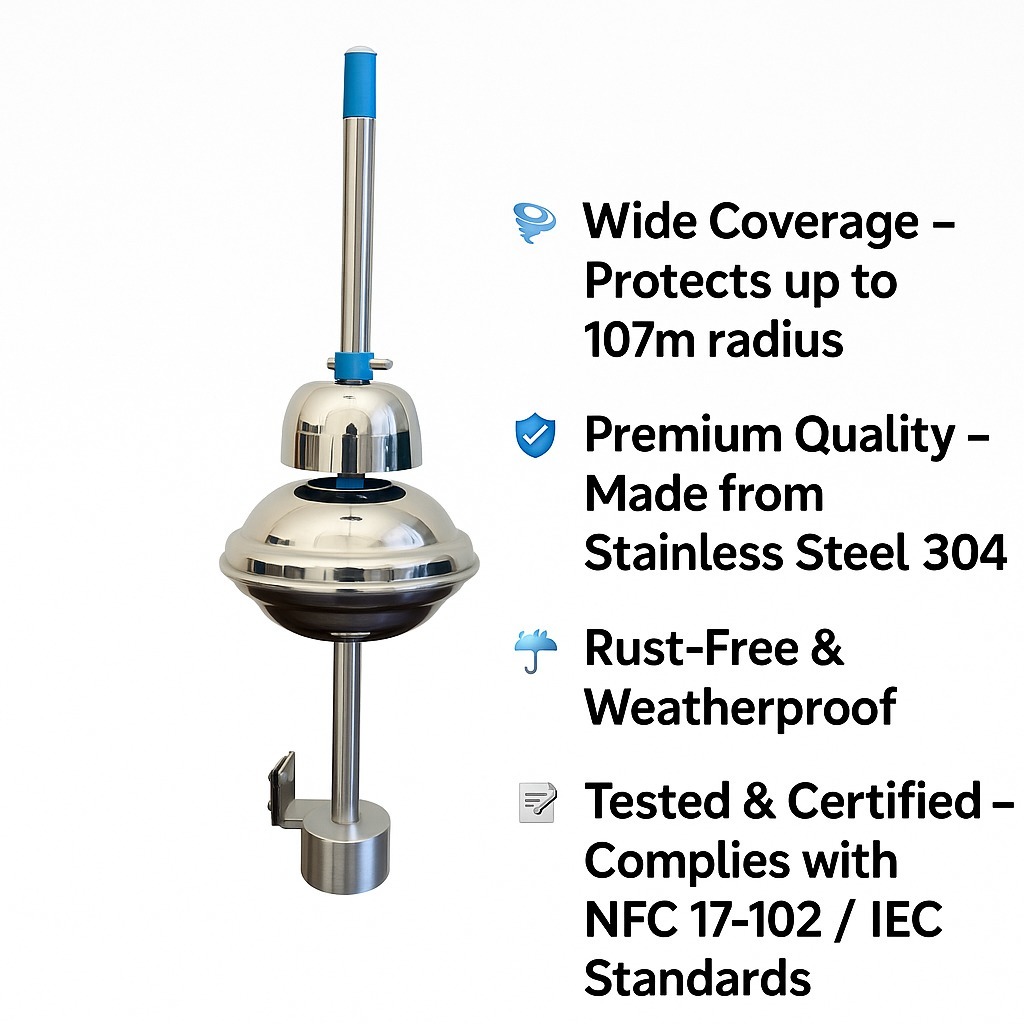

Provides advanced lightning protection, wide coverage, durable stainless steel build, weather-resistant, maintenance-free, enhances safety, ensures reliable performance in harsh environmental conditions.
lightning protection systems.
Lightning protection systems helps to capture lightning strikes safely and direct them to the grounding system, protecting buildings and structures.
Product Specification & Details
| Specification | Details |
|---|---|
| Type | Early Streamer Emission (ESE) Lightning Arrestor |
| Material | Stainless Steel (AISI 304/316) |
| Triggering Advance Time (ΔT) | 15μs / 30μs / 45μs (based on model) |
| Protection Radius (at 5m height) | Up to 80 meters (model-dependent) |
| Protection Radius (at 10m height) | Up to 107 meters |
| Lightning Impulse Current Capacity | ≥100 kA |
| Working Environment | -40°C to +85°C, humidity up to 100% |
| Mounting Height (Recommended) | Minimum 2 meters above highest point |
| Maintenance | No routine maintenance required |
| Compliance | NFC 17-102:2011 / IEC 62305 |
